    PLC touch screen AC220V 50Hz Textile Testing Equipment

    Ask Lasest Price
    Brand Name : Hust Tony Instruments
    Model Number : HTZ-008
    Price : negotiable
    Payment Terms : Western Union, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    PLC touch screen AC220V 50Hz Textile Testing Equipment

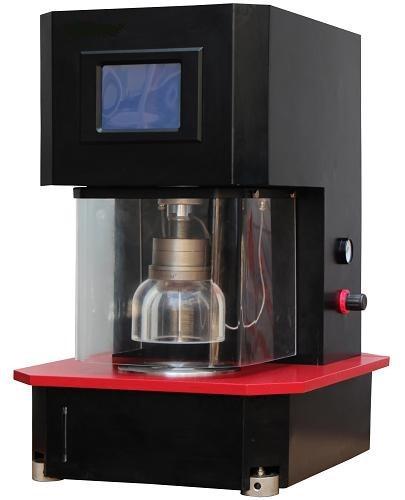

    Fabric Digital Bursting Strength Testing Machine , Textile Testing Equipment Full Automatically


    ISO 13938.1 Digital Fabric Bursting Strength Tester,good quality and easy-operation fabric testing machine


    The Mullen Burst Tester uses a hydraulic method for the determination of bursting strength and bursting distension of textile fabrics. It’s applicable to knitted, woven, nonwoven and laminated fabrics.


    Standards: ISO 13938.1, GB/T 7742,FZ/T 60019,FZ/T 01030,ASTM D3786,BS 4768,WOOLMARK TM 29,WSP 30.1,JIS L 1018.6.17


    Characteristics:

    1. Using the hydraulic method, it’s in line with the new national standard.

    2. Touch screen control, simple and easy to operate, touch sensitive.

    3. Pneumatic clamping, uniform clamping, and adjustable clamp pressure to avoid slipping or damage to sample, easy to use.

    4. Test cover is high transparent organic glass with a built-in LED lamp, which can observe the test process of sample clearly.

    5. Automatic induction blasting system is sensitive and reliable.

    6. External installation of organic glass cover to prevent the injury to people, safe to use.

    7. Using AC servo drive system and synchronous belt wheel drive, noise is low, speed rage is wide and precision is high.

    8. Own thermal printer can directly print reports and support working with professional computer software.


    Technical parameters:

    Sample holder inner diameter (Test area):50cm²(φ79.8mm) or 7.3cm²(φ30.5mm);optional
    Elastic membrane (diaphragm)size:ODφ130mm, thickness:≤2mm
    Max range:2.00 Mpa , Min reading:0.001 Mpa
    Max distension :75mm±0.02mm
    Pressure rate:20ml/min~600ml/min
    Test methods:fixed rate expansion, constant pressure, constant expansion and timing
    Pressure unit:kpa,kgf/ cm2,atm,mmHg,lb/in2
    Dimension:550mm×450mm×700mm(L×W×H)

    Output

    Printout,display output

    Power

    Ac220V /50Hz ,200W


    ISO 13938.1 Fabric Bursting Strength Tester:
