IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07

Ask Lasest Price
Brand Name :	HUST Tony
Model Number :	WT-07
Price :	contact saler
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	100 sets per month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07

IPX5 IPX6 Water Jetting Test Chamber is applied to test the watertightness of enclosures of automotive parts, outdoor lamps and electronics parts.
The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.

IPX5 and IPX6 functions on one test chamber,make testing convenient and cost-effective.

Standard :
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.1, 14.2.2 and Figure 3
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.3

Features:

1. Suitable for product IPX5, IPX6 waterproof testing

2. The shell is made from domestic high-quality steel plate.

3. Equipment with water tank, can recycle water, no need to build a professional waterproof test room.

4. The use of high-quality servo motor, low noise, swing speed, angle more accurate..

5. The operator is not required to carry out the test with a spray gun, just fixed a sample can be tested.

6. The turntable electrical part is fully sealed, effectively preventing water inlet and leakage .

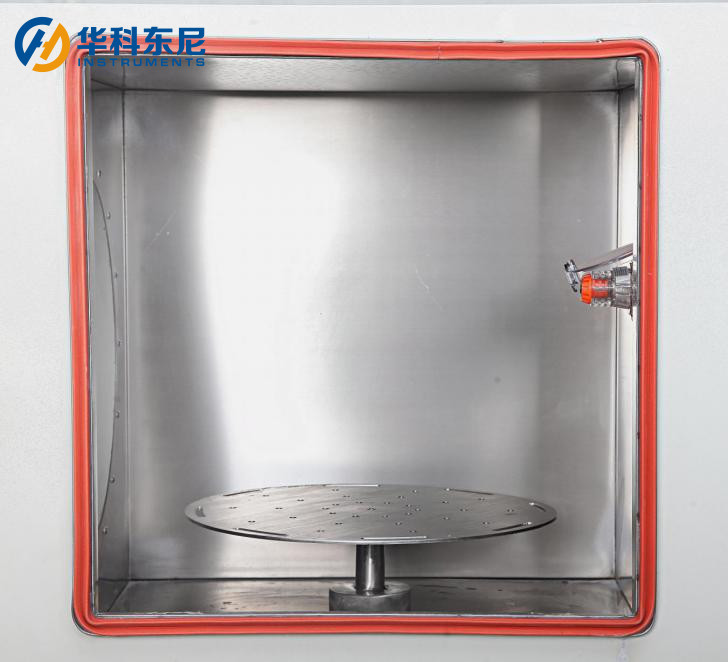

7. sample turntable: US304 stainless steel plate processing and manufacturing.

8. The power-off time of the sample power supply can be controlled by the program: power failure (0-999 min) - power on (0-999min) - power failure (0-999min), suitable for samples in the test need to power off.

9. Nozzle: According to IEC60529 .

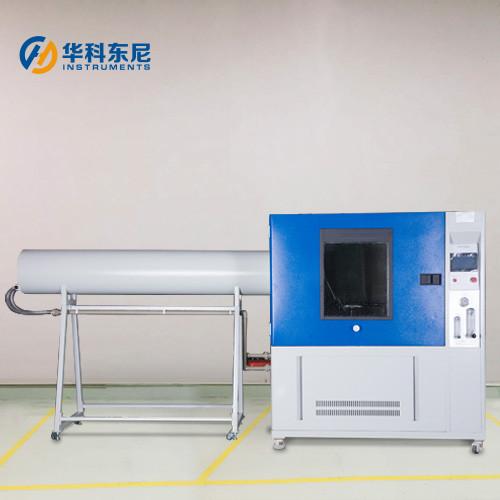

IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07

10. LED waterproof lighting is installed in the test chamber to facilitate the observation of the test sample.

Technical parameters :

Apply to the product	IPX5, IPX6 test
IPX5 Spray hole size	Dia 6.3 mm
IPX6 Spray hole size	Dia 12.5 mm
Inner size	800800800 mm (turntable 200 mm High)
Tank volume	40L
Turntable diameter	600 mm
Sample turntable’s size	600600600 mm

Flow	12.5±0.625(L/min)(IPX5) ; 100±5(L/min)(IPX6)
Turntable height adjustable range	(Non-lifting (fixed)
Water flow control	Manual adjustment (rotor flow meter)
Water spray distance	2.7 m (nozzle distance from the center of the turntable)
Spray gun fixing method	Fixed (or adjust the angle manually )
Turntable's maximum load	50 KG
Spraying water	recyclable

Safety protection	Leakage protection, water shortage protection, short-circuit protection
Dimensions	354010401600 mm
Machine power supply	AC380V；3.0kw, Fire line+zero line+protective ground line(Resistance＜4Ω)
Sample load power supply	AC220V±10% ；50Hz

Terms of use :

Environmental requirements	l Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches. l Well ventilated. l No strong electromagnetic field around. l No flammable, non-explosive, non-corrosive substances and dust around . l Rack and control box Distance: 800-1000mm.
Temperature	5℃～35℃
Humidity	≤85%
Atmospheric pressure	86kPa～106kPa
Power supply conditions	l Install the appropriate capacity of the leakage protection air switch for the device, the switch must be used independently of the device. l Do not use the knife-switch or power outlet. l Distance is no more than 2m from the air switch of creepage and equipment .
Water conditions	l The water pressure is not less than 0.2Mpa and a 4-point tap is installed. l The tap is no more than 2 meters away from the device.

Accessories:
1. Waterproof socket (IP66) 1pcs;
2. water tube : 5 meter *1 pcs

IPX5 IPX6 Waterproof Testing Strong Jet Water Test Chamber WT-07

Types of IPX

IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);--Model :WT-01/02/03
IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);--Model : WT-04 /05
IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);--Model : WT-06/07/08
IPX7 the water immersion test equipment ;--Model : WT-09
IPX8 Pressure Immersion Water Test equipment --Model : WT-10
IPX7 / IPX 8 water and Pressure water immersion test equipment --Model : WT-11
IPX9 9K High Temperature And High Pressure Water Spray Test Chamber --Model : WT-12
IEC60529 IP5X IP6X Dust Test equipment (500L / 1000L )--Model : WT-13/14
