Use :This machine based on BIFMA X5.1, BIFMA X5.4 & BIFMA X5.9:

-Chair – vertical backrest, tablet, foot rest, arm durability for multi seating, structural durability

-Cabinet- leg/glide assembly strength test

Standard :

1. BIFMA X5.1 , BIFMA X5.9

- Chair -Vertical backrest , tablet , foot , rest, arm , durability for multi-seating, structural durability , dan tilting durability .

- Cabinet - leg/glide assembly strength test

1. BS EN 1728 , BSEN 1725 , BS 1730

- Chairs , Desk ,Bed .

Video , click here

Technical specifications

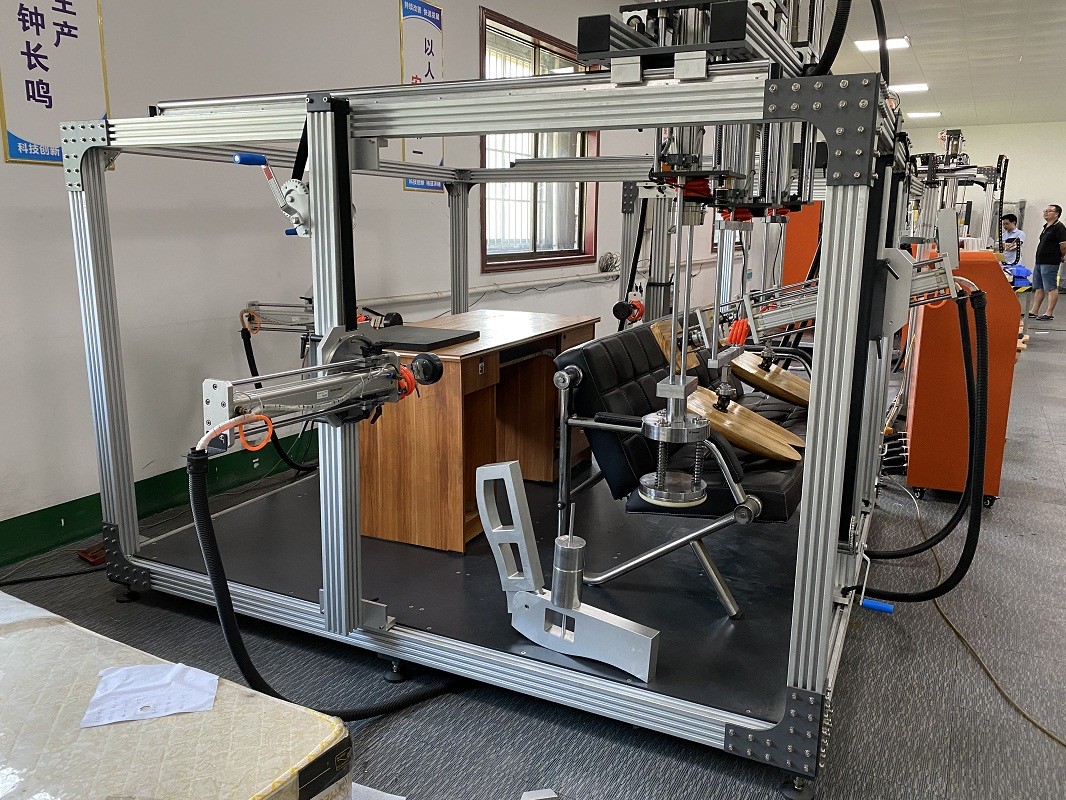

This machine use for apply load on vertical and horizontal on chair and cabinet with variety size. It is need to fulfill minimum needed as follow:

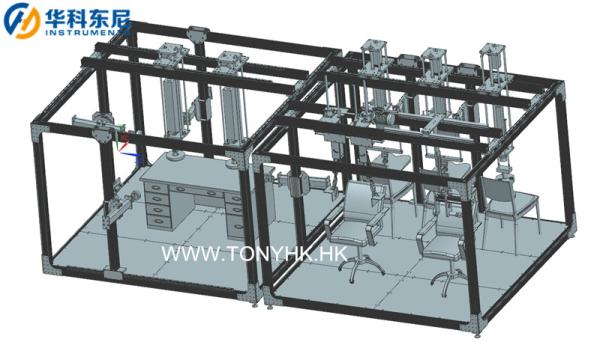

a)Frame

-6 vertical post – 4 fixed, 2 adjustable position along the frame length (3m) to hold horizontal cylinder

-5 horizontal cross bar – 4 fixed, 1 adjustable position along the frame length (3m) and height (2m) to hold vertical cylinder,

-Adjustable position& height

b)Size: 2m x 3m x 2m(H)

c)Type of cylinder: double-acting cylinder

d)Maximum force:2000Newton

e)One(1) unit horizontal Cylinder:

-To apply a horizontal force for tilting and legs/glide tests

-Attached to the pulley system (adjustable & removable )

-Adjustable height (500-1800mm) & horizontal position (along the frame length, 3m)

-Stroke length :500mm

f)1 unit vertical cylinder:

-To apply a vertical force for back rest, tablet and arm rest tests

-Adjustable position along the cross bar (2m)

-Stroke length: 500mm

g)Voltage : single phase AC 220V, 50/60Hz

h)Compress air : 6 kg /cm²

i)Control panel

-ON/OFF button

- Load display

-Cycle display- 6 digit

-Force holding time: one(1) minute (strength test)
