    Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002

    Ask Lasest Price
    Brand Name : HUST Tony
    Model Number : HTP-002
    Price : contact saler
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002

    1. Deformation under defined load: Test deformation under defined load of tested sample

    2. Load under defined deformation: Test load under defined deformation of tested sample

    3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

    4.1. Tensile Test
    2. Compression Test
    3. Peel Test
    4. Bend Test
    5. Tear Test
    6. Shear Test
    7. and customizable test properties


    Use Video : Youtube link -- Tear test
    Specification:
    Capacity : 200KG (2,5,10,20,50,100,200kg for option)
    Effective load range: 0.4%~100%
    Load accuracy: ±0.5% of value
    Display: Computer Test Software
    Units : Kg,lb,N
    Data sampling frequency : 200times/sec
    Load solution : 1/±250000 of max load
    Load sensor : Pull and press sensor(max load)
    effective test width : 150mm
    Effective stroke: 500mm
    Test speed : 50-500mm/min
    Displacement accuracy : ±0.5%
    Returning function : Manual or automatic two option, after test the up fixture will return to the
    initial position
    Safety device : electronic process for limit procession
    Overload protection : If 10% over than max load,machine will automatic stop for protection
    Result print : Outside printer that connect to computer
    Grip : tensile fixture 1 set
    Machine Size : 420×350×1520mm
    Machine weight : Approx 50 Kg
    Power : 220V±10% 0.2KW/0.4KW

    Standard accessories:
    Tensile strength fixtures 1 set,
    Computer test software 1 set,
    English manual book 1 pcs
    Net weight : 50KG, Gross weight: 65KG; Plywood box size: 50*45*160cm

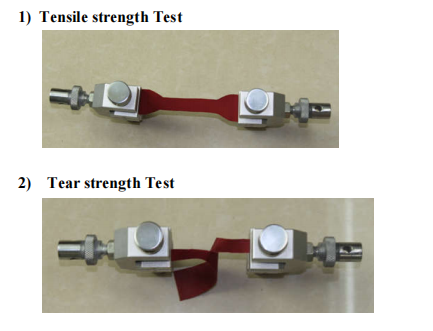

    Grips:
