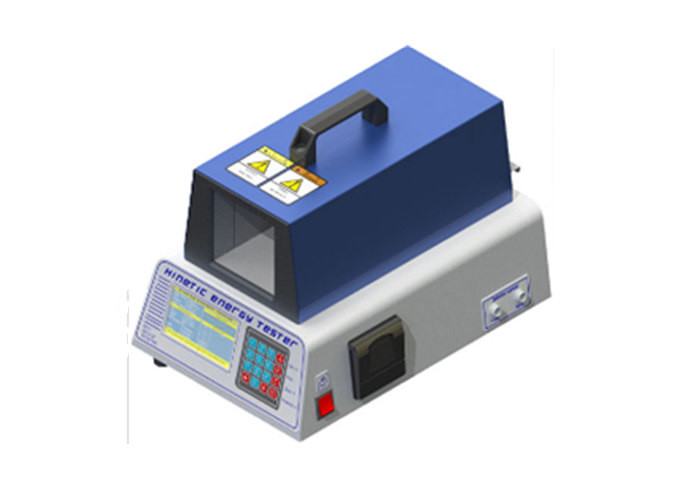

EN71,ISO8124 Standard Projectile Velocity Kinetic Energy Tester For Toy Testing

Projectile Velocity Kinetic Energy Tester To determine the size catapults kinetic energy of toys, the ejection of parts of the test apparatus through the tube or external testing of the components of the two sensors detect the ejection toy parts used away after a certain period of time, it has calculated the move Energy. The main instruments used for this test launch of baby toys or children's safety.

Main Parameters:

1.Display: Color LCD

2.Test cycle: 5 times/group

3.Internal test channel: High sensitivity infrared ray raster

4.Internal test channel: 100mmx100mm

5.Internal test distance: 6in/152.4mm

I6.nternal test projectile size:2mm~60mm

7.External test sensors: High sensitivity infrared ray sensor

8.External test projectile:any moveable items

9.External sensors distance:25~380mm adjustable

10.Test projectiles weight:key input,0.01~999.99g

11.Test Distance:key input, 0.1~999.9mm

12.Time display:0.000001~9.999999s

13.Speed display:Automatic calculation and display, 0.0001~999.99 m/s

14.Kinetic energy display:Automatic calculation and display, 0.000001~999.999999 J

15.Data display:current test time, speed, kinetic energy, average value of five times test, max test value

Printout:sample number, weight, distance, average time, min time, average speed, max speed, average kinetic energy, max kinetic energy

16.Size (WxDxH):main frame 31x42x30cm, external part: 9x43x13cm

17.Weigth (approx) ≈12Kg

18.Weight: AC 220V 50Hz 3A

Standards:

ISO 8124-1 4.18:5.15 Kinetic energy of projectiles, bows and arrows; CFR 1500 ASTM F963 4.8, EN-71-1 2014 8.24 Determination of kinetic energy
