Sofa Comprehensive Durability Test Machine From Manufacture QB/T 1952.1

Ask Lasest Price
Brand Name :	HUST Tony
Model Number :	TNJ-010
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	100 sets per month
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

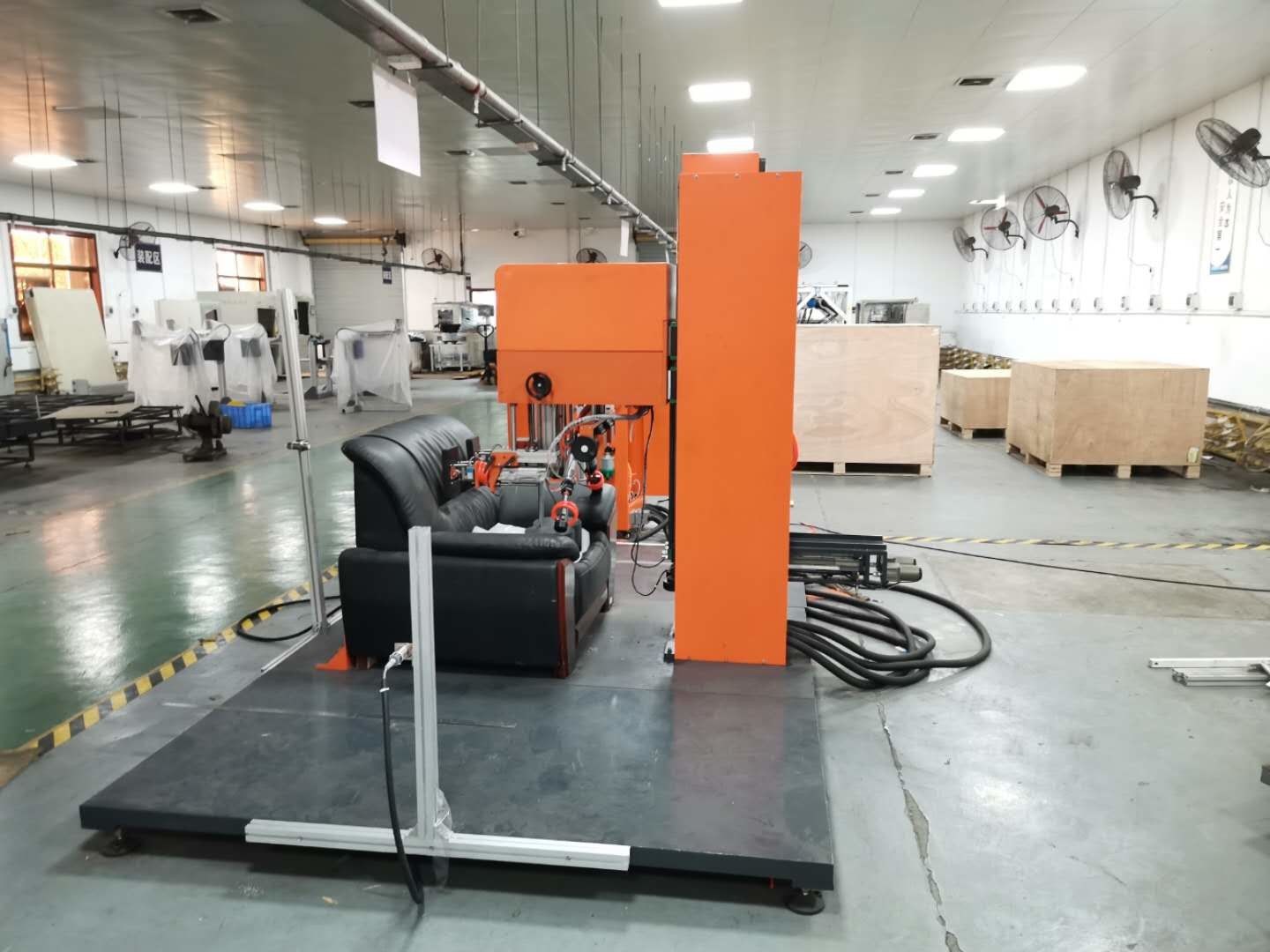

Sofa Comprehensive Durability Test Machine From Manufacture QB/T 1952.1

Programmable Sofa Durability Testing Machines simulates the normal conditions of usage to determine the sofa’s endurance under a long-term repeatability loading . The principle is to simulate normal functional use to determine the strength of the three-sofa structure by applying to seating and backrest with loads . Using a certain shape and load modules , with specific form , frequency , respectively , repeating load seating , backrest and armrest . Three tests can work together or independently , also the test position is adjustable .

Standard :QB/T 1952.1

Specifications:

Weigh of loading block:50±5kg

Loading position:350 mm before Seat surface

Armrest loading block:Φ50mm,edge of loading surface:R10mm

Armrest loading position:80mm before armrest

Armrest loading direction:45°according to horizontal direction

Armrest loading force:250N

Backrest loading block:100mmX200mm,edge of loading surface:R10mm

Backrest loading position:The center of two loading parts’ distance is 300mm,450mm height or it is the same level according to the Backrest upward.

Backrest loading force:300N

The way of loading:load alternately

Testing disc:Φ100mm Edge of testing surface:R10mm

Testing speed:100±20mm/min

Weigh:Loading surface Φ350mm edge:R3,weigh:70±0.5kg

Lift way of testing group:Motor drive screw to lift. Controller:touch screen to display.

Frequency of testing:0.33~0.42Hz(20~25times/min)

Air supply:7kgf/cm^2 or more stable air supply

Size:host:152x200x165cm

Weigh:1350kg

Power: three-phase four-wire 380V

Also we support OEM ,ODM.
