Dual Arm Computer Servo Tensile Testing Machine With Effective Test Width 400mm

    Buy cheap Dual Arm Computer Servo Tensile Testing Machine With Effective Test Width 400mm from wholesalers

    Buy cheap Dual Arm Computer Servo Tensile Testing Machine With Effective Test Width 400mm from wholesalers
    • Buy cheap Dual Arm Computer Servo Tensile Testing Machine With Effective Test Width 400mm from wholesalers

    Dual Arm Computer Servo Tensile Testing Machine With Effective Test Width 400mm

    Ask Lasest Price
    Brand Name : HTI
    Model Number : HTP-004
    Certification : ASTM D751,ASTM D882,ASTM D1117,ASTM D1445,ASTM D1593,ASTM D1683,ASTM D2209
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

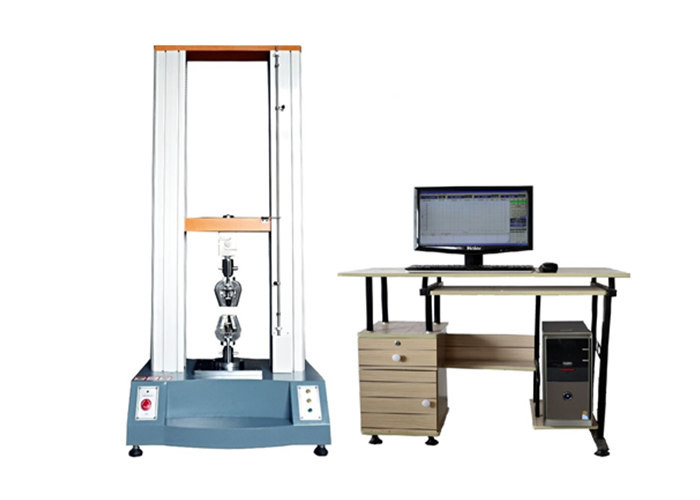

    Dual Arm Computer Servo Tensile Testing Machine With Effective Test Width 400mm

    Dual Arm Computer Servo Tensile Strength Tester(Digital Display)


    Introduction of product:

    This Tester can widely apply to a variety of different textile materials and wood, shoes, tires, leather, tannery,rubber tubes, triangular tape, plastic sheeting, plastic sheeting, packaging films, acrylic, FRP, ABS, EVA, PV and other products, semi-or dumbbell-shaped specimens of the tensile strength, elongation, tear, glue focused, tensile stress, peel, shear, the sticky relay of rubber and metal by using different fixtures


    Technical parameters:

    ItemModel
    Max CapacityHTP-004AHTP-004BHTP-004CHTP-004DHTP-004EHTP-004FHTP-004GHTP-004HHTP-004I
    1000N2000N5000N10KN20KN30KN50KN100KN150KN
    Accracy0.5 grade
    Test force loading the measuring range0.4%-100%FS
    Load SensorHigh precision tension and pressure transmitter (multiple sensors can be installed at the same time - optional)
    Max Test Force Resolution1/200000
    Unit ShiftN,KN,KGF,N,LBF,unit of length: mm, cm, inch freely shift convertible
    Test Speed range0.01 - 500mm / min. or specified per customer.
    Speed Control Accuracy± 0.5% when the control rate ≥ 0.05% FS/S
    Displacement measurement Accuracy± 0.5% of indication
    Test Strok800mm,Effective test width 400mm or Customization
    Dynamic systemServo motor + hight precision ball screw
    Overload Protect systemOver 10% of the set test force, the system will be stopped automatically
    Power220 VAC, 50/60 Hz,0.75 kW;
    Dimension1100*700**2100mm(L*W*H)
    Weight400KG

    Comply With Standards:

    ASTM D751,ASTM D882,ASTM D1117,ASTM D1445,ASTM D1593,ASTM D1683,ASTM D2209,ASTM D5034,ASTM D5053,ASTM D1424,ASTM D2212,ASTM D2262,ASTM D2261,ASTM D4704,ASTM D4705,ASTM D5733,ASTM D5734,ASTM D2207,ASTM D412,ASTM D638 ,ASTM D3137,ASTM D3574,ASTM D624,ASTM D3574,ASTM D4964,ASTM D2061,ASTM D5169,ASTM D5170,ASTM D2558,ASTM D413
