Brand Name : | HTI |
Model Number : | HTF-006 |
Certification : | AATCC 93, M&S P26 ,M&S P53, NEXT 31 |
Price : | Negotiation |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 10 sets per month |
Delivery Time : | 15 working days |

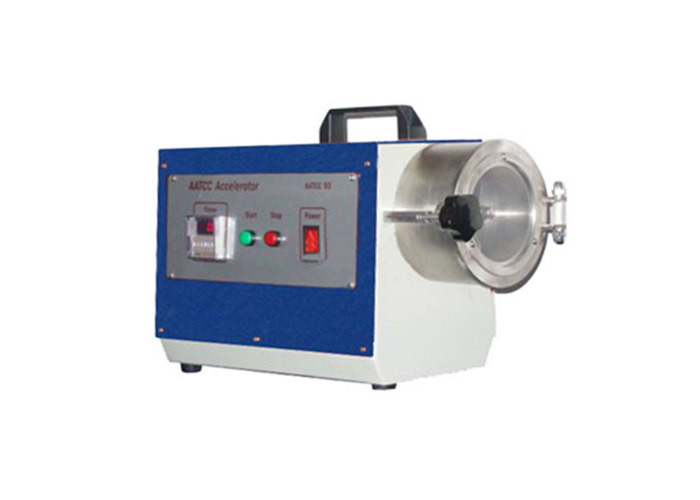

Product Name: AATCC Accelerotor
Model: HTF-006
Detailed Description
AATCC Accelerotor, to rapidly determine abrasion resistance of flexible materials including textiles, paper, leather and plastics in both wet and dry conditions. Samples are rapidly tubled within a cylindrical test chamber lined with an appropriate abrasion material. The tumbling action is provided by a propeller shaped rotor for a predetermined time at a predetermined speed. wet and dry .
The abrasion resistance is evaluated by determining the weight loss of the specimen or grab strength loss of the specimen when broken at an abraded fold line.
Specifications
Speed: | 3500r/min |
href="app:ds:impeller" Impeller: | S Shape rate type, 114mm length |
Timer: | 0.1s~99H |
Test chamber: | Dia. 140mm, depth 70mm |
Dimensions ( W*D*H): | 465*204*306mm |
Weights: | 26kg |
Power: | AC 220V 50Hz 3A |
Accessories: | Power line 1 pcs |
Standard:
AATCC 93, M&S P26 ,M&S P53, NEXT 31
![]() |
