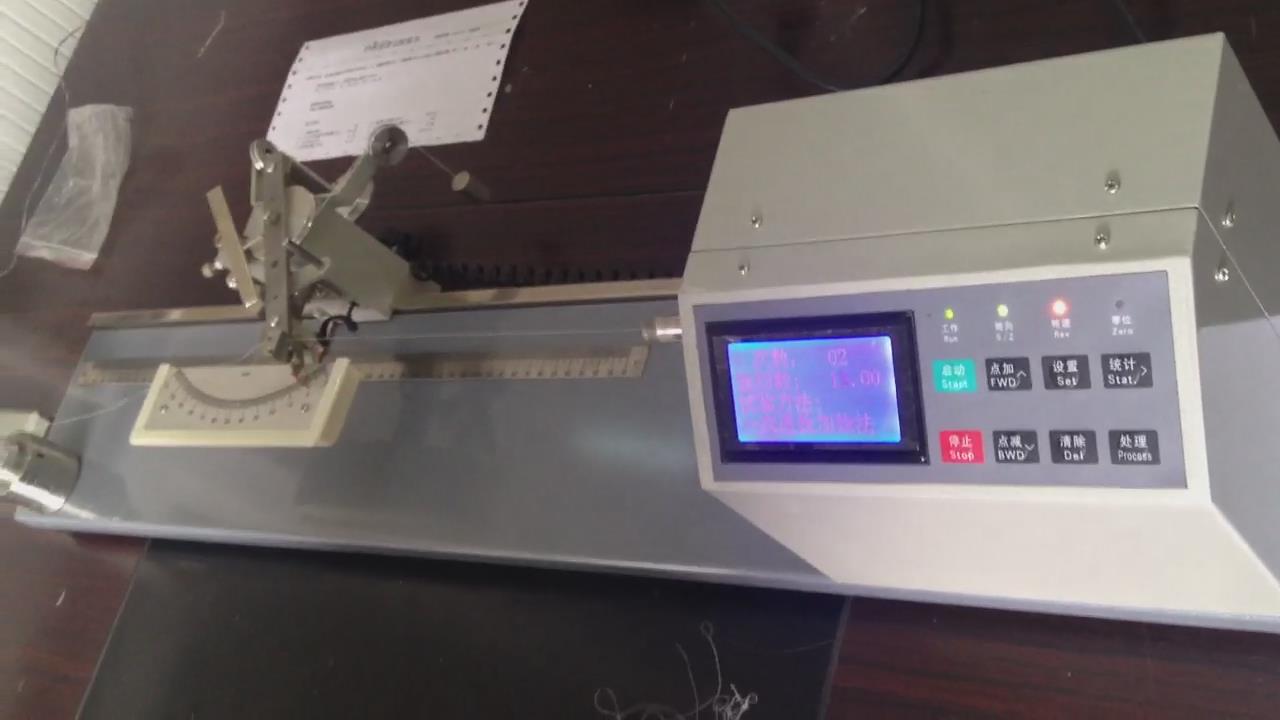

HTY-003B Electronic Twist Tester (Twist checking) - Yarn twist checking machine

This electronic twist tester is used to determine twist of single , twisted and open end yarns by electronic.

The machine is used for the textile industry to test the yarn twist such as cotton,wool,silk,fibre,chemical fiber etc. Automatically to counting and printing the test data .

Features:

Three methods available to be selected by the operator :

1.Traditional "untwist/ retwist " methos for single yarns.

2.Direct " untwist" method for plied yarns , threads and multifilament yarns.

3.Untwist, retwist and double countercheck for worsted and slippery yarns.

4.. Yarn tension:horizontal weights for pre-tension(adjustable according to yarns)；

5. Test data ouput:A. display output:LCD display screen,it could show test cycles,single twist of yarn,twist multiplier and statistice value etc.

B. printout:this unit could connect to a printer for data output

Parameters:

Application range: all kinds of yarns

Testing Lengh: 10～500mm selectable

Testing Range(Twist): 1-9999.9

Test cycles: 100 times

Testing Speed: 500-2000rpm

Movable clamp rev:500r/min～2000r/min (continuously adjustable)；

Movable clamp inching rev:100r/min～2000r/min(continuously adjustable)；

Power Source::AC220V±10% 50Hz

Rated power:20W

Dimension:970mm×250mm×310mm

Weight:10kg

Standards: GB/T2543.1 ;GB/2543.2; ISO 2061; BS 2085; ASTM 1422/1423; DIN 53832 IWTO 25-70
