ASTM D6797 Single Arm Computer Servo Fabric Ball Burst Strength
Test Machine- CRE Type
ASTM D4964 Single Arm Computer Servo Fabric Tensile Testing Machine
for Tension and Elongation of Elastic Fabrics (Constant-Rate-
of-Extension Type
This universal machine can do various strength testing in the field
of rubber, plastics,chipboards, foam, plastic, film, flexible
packaging, pipes, textiles, fibers, nanomaterials, polymers,
composite materials, synthetic materials, packaging, paper, wire
and cable, fiber optic cable, wirecables, seat belt, seat belt,
leather belt, shoes, tape, polymer, copper, spring steel wire,
stainless steel, castings, brass, non-ferrous metals, car parts,
alloys and other non-metallicmaterials and metallic materials.
The UTM is a versatile and valuable piece of testing equipment that
can evaluate materials properties such as tensile strength,
elasticity, compression, yield strength, elastic and plastic
deformation, bend compression, and strain hardening. tensile, ball
burst compression, bending, tearing, and 90 ° peel, 180 ° peel,
shear adhesion, pull-out strength, an extension of the elongation
test.
International famous brand -Japan Mitsubishi Servo System
USA Transcell Brand Force Sensor, Japan Omron Brand electric
components
All components pass the aging test,life test and noise test etc.
Standards:ASTM
D6797-15, ASTM D4964,GB/T 19976 ,FZ/T 01030,FZ/T 60019,ASTM D 3787
Standard accessories:
Tensile strength fixtures 1 set,
Computer test software 1 set,
English manual book 1 pcs.
Ball-Burst attachment 1 set for ASTM D6797

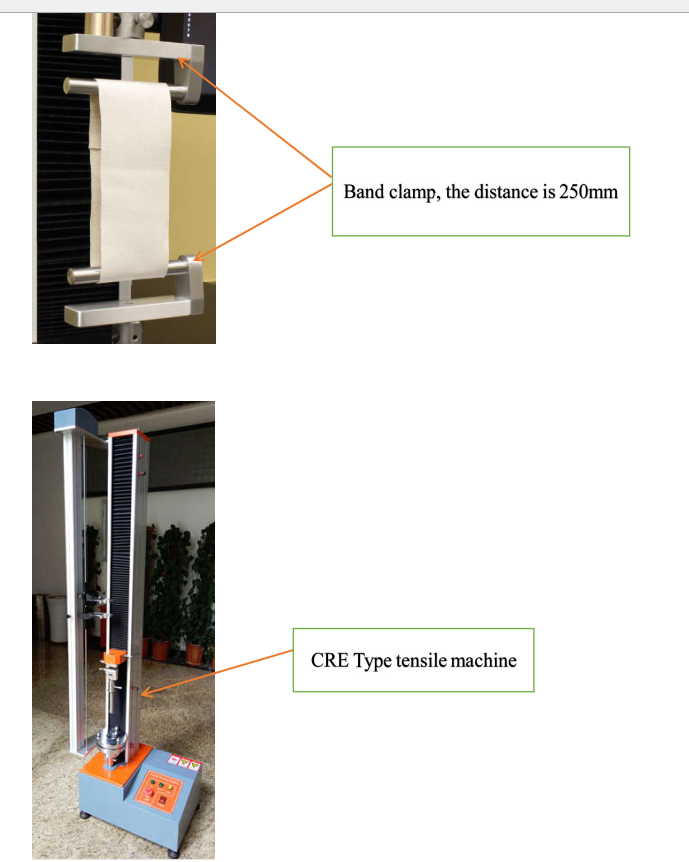

Band Clamp 1 Set for ASTM D4964
Specification:
| Capacity | 100KG (2,5,10,20,50,100,200kg for option) |
| Effective load range | 0.4％～100％ |
| Load accuracy | ±0.5％ of value |
| Display | Computer Test Software |
| Units | Kg,lb,N |
| Data sampling frequency | 200times/sec |
| Load solution | 1/±250000 of max load |
| Load sensor | Pull and press sensor(max load) |
| effective test width | 150mm |
| Effective stroke | 500mm |
| Test speed | 50-500mm/min |
| Displacement accuracy | ±0.5％ |
| Returning function | Manual or automatic two option, after test the up fixture will
return to the initial position |
| Safety device | electronic process for limit procession |
| Overload protection | If 10％ over than max load,machine will automatic stop for
protection |
| Result print | Outside printer that connect to computer |
| Grip | tensile fixture 1 set |
| Machine Size | 420×350×1520mm |
| Machine weight | Approx 100 Kg |
| Power | 220V±10% 0.2KW/0.4KW |
