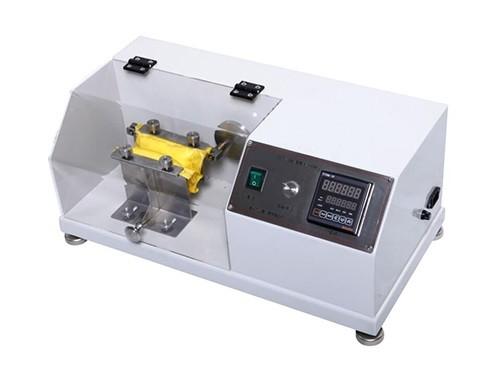

Fabric drilling tester is used to test the drilling ability of
winter wear, bedding bag, bedding, feather lining
materials or fiber to drill through the fabric.
This instrument is based on GB/T12705 ,GB/T14272-2011, EN12132-1,Determination of anti drilling
cashmere fabric by the friction method, to evaluate the fabric to
prevent feather, feather and wool silk
from the properties of the surface drill.
The instrument adopts high precision counter, through the machine
itself to down sample cloth squeeze,
rub with the role of friction, root numbers calculated drilled from
the specimen bag of feathers, feather
and wool yarn. The instrument has the advantages of simple
operation, reliable and stable transmission,
improve labor efficiency.
Standards: GB/T14272-2011,GB/T12705-1,BS12132-1 EN12132-1
Parameters:
clamp spacing: 44-75mm adjustable, eccentricity: 25±0.5mm
Rubbing test speed: 135±2r r/min
sample dimension:sample(140±5)mmX(420±10)mm,sample mat 120mmX210mm
infilling: down feather,feather or the mixture
test cycles: 2700 revolution
counter: LED liquid crystal display 0~99999 cycles can be set
volume: (WxDxH) 560x285x250(mm)
weight(about): ≈17Kg
power: AC220V , 50/60Hz , 25W
