1500mm Height Free Drop ISO Package Testing Equipment for Paper Carton Compression

Ask Lasest Price
Brand Name :	HTI
Model Number :	TNT-11
Certification :	ISO, CE, CMC
Price :	Negotiation
Payment Terms :	Western Union, T/T, L/C
Supply Ability :	20 sets/month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

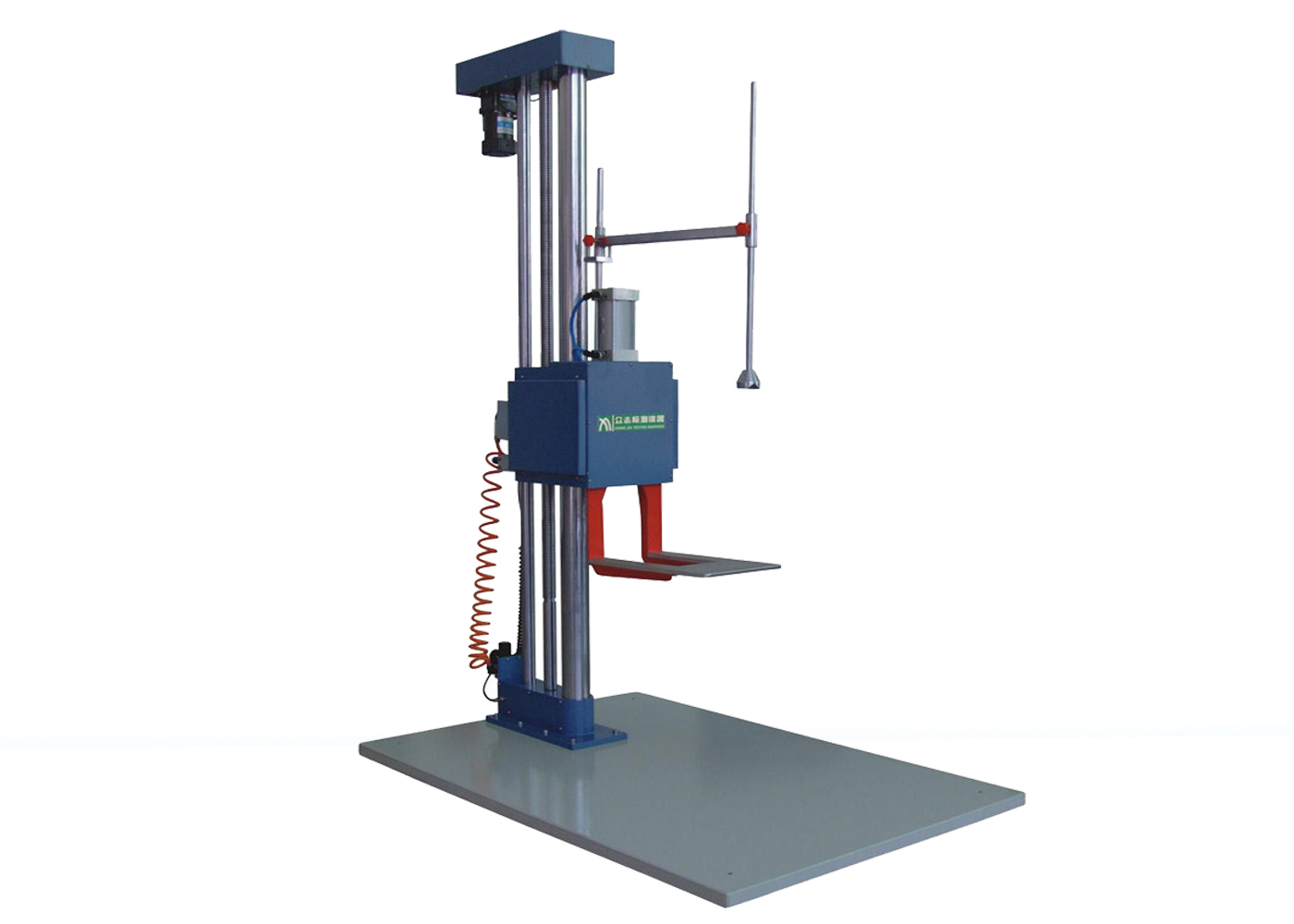

1500mm Height Free Drop ISO Package Testing Equipment for Paper Carton Compression

1500mm Height Free Drop ISO Package Testing Equipment for Paper Carton Compression

Application:

Drop impact tester used in toy, electron, electric equipment, communication, furniture, gift, ceramic and other packages for testing during the application and transportation, handling which will get the infection of dropping and shocking. Except the flat dropping, it is also can do arris or angle dropping. The test can do completely performance evaluation of the package and product.

Main Features:

1) Use double-shaft and guide pillar structure, stable support the rising and falling process, do not appear swing phenomenon

2) Use precise threaded rod to control rising and falling, precisely and quickly to fix position.

3) The swing arm use ≥3g/sec acceleration to fall the test specimen during the dropping process.

4) The machine will not go down automatically when abnormal outage during the test;the swing arm can realize the no pressure state automatically and do not be break away from the machine abnormally.

5) The machine uses oil pressure buffer unit device which will adopt 90% kinetic energy to make the machine working stabled and low noise.

Technical Parameter:

1) drop height range: 300---1500mm

2) maximum loading: 85Kg

3) height display:standard limb

4) form of the machine:single corber supporting test specimen,pneumatic droping

5) control mode: stick control

6) droping mode:freely drop

7) height adjustment:motor controls precise threaded rod to adjustment

8) test volume:800×800×800mm

9) corbel height:50cm

10) buffer gear:hydraulic pressure buffer

11) dimension of the machine(mm): 1500(W)×1200(L)×2150(H)

12) baseboard dimension(mm): 1500(W)×1200(L)×20(H)

13) power:single phase,220V,50HZ

14) air pressure requirement:7kg/cm2

15) weight:about 560kg

Standards:

GB/T4857.5 ISO2248-72E JISZ0202-87 IEC68-2-27 ISTA3A
