    Touch Screen Bottle Cap Torque Tester ASTM D2063 -- HTZ-031

    Ask Lasest Price
    Brand Name : HUST Tony
    Model Number : HTZ-031
    Price : contact saler
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

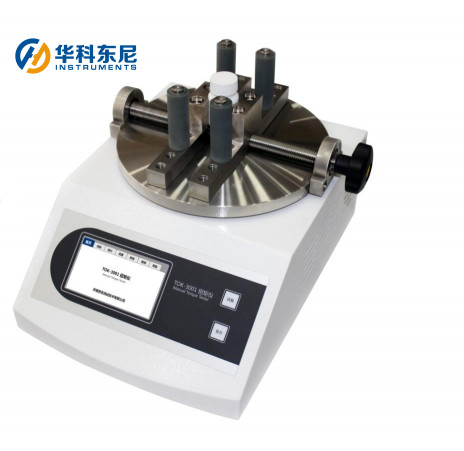

    Touch Screen Bottle Cap Torque Tester ASTM D2063 -- HTZ-031

    Application :Torque Tester is one of intelligent multi-function instruction equipment for testing or inspecting many kinds of caps with torque. It specially is used on testing the torque of cap or lamb cap. It is widely used on product control system, with the function of easy to operate, high accuracy and economy.
    Technical indexes

    1. Range: 20Nm(standard); 40Nm, 50Nm(optional)
    2. Accuracy: 0.3%FS
    3. Resolution: 0.001 Nm
    4. Sample diameter: Ф1mm ~ Ф180mm
    5. Power supply: AC 220V 50Hz
    6. Dimension: 245mm(L) X 340mm(W) X 238mm(H)
    7. Net weight: 20kg


    Standard
    ASTM D2063, ASTM D3198, ASTM D3474, GB/T 17876, BB/T 0025
    Features

    1. touch screen operation
    2. Peak value test, continuous test, limit value test
    3. Clockwise, un-clockwise test
    4. Micro-printer prints mini-report
    5. Torque curve display on LCD screen
    6. Results statistical calculation(mean, SD, etc)
    7. Historical data query on touch screen
    8. RS232 communication port

    accessories:
    main unit, micro-printer, micro-printer paper
    Optional: micro-printer paper
