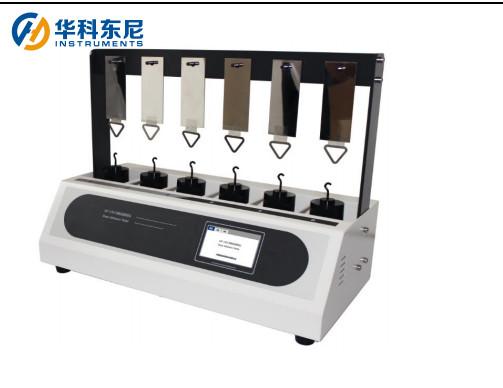

    ASTM D3654 & GB 4851 Tape Adhesive Tester Machine - HTZ 013

    Ask Lasest Price
    Brand Name : HUST Tony
    Model Number : HTZ-013
    Price : contact saler
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    ASTM D3654 & GB 4851 Tape Adhesive Tester Machine - HTZ 013

    Application :For determining the ability of pressure-sensitive tapes to remain adhered under constant load applied parallel to the surface of the tape and substrate.
    Technical indexes

    1. Load Mass: 1000g ± 10g ( Includes panel weight )
    2. Timer Range: 0 – 10,000h
    3. Timer Step: 1sec
    4. Panel Size: 60mm(L)×40mm(B)×2.0mm(D)
    5. Test Station: 6, independent
    6. Roller Weight: 2000g ± 50g
    7. Dimension: 577mm(L)×279mm(B)×388mm(H)
    8. Power: AC (80-240)V (40-66)Hz
    9. Net Weight: 20kg

    Standard
    ASTM D3654, PSTC 107, GB 4851, JIS Z0237
    Features

    1Precise time control along with wide timer range
    2.6 independent test stations in one
    3.Embedded proximity sensor, auto start test and auto stop
    4.Touch screen operation, real color TFT LCD display.

    accessories:
    main unit, roller, stainless steel panel, load mass, power line.
    Optional: load mass(non-standard).
