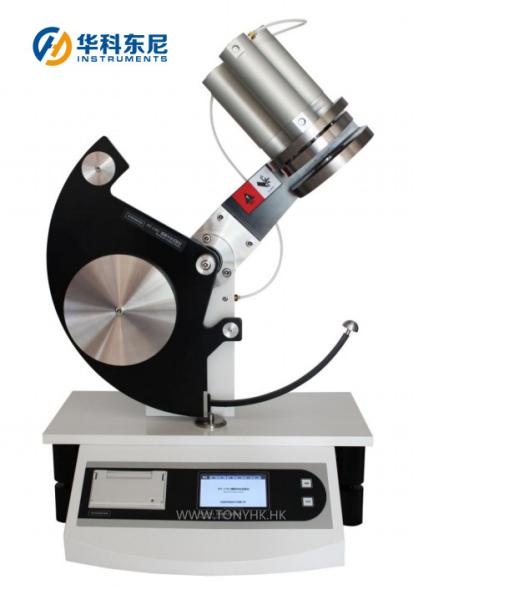

    Film Impact Tester Pendulum Impact Testing Machine Meet ASTM D3420

    Application :Pendulum Impact Tester is professionally applicable to the determination of resistance to impact-puncture penetration of films, textile , composite films, aluminum foils and other materials.
    Technical indexes

    1. Impact capacity: 1J, 2J, 3J, 5J (optional)
    2. Resolution: 0.001J
    3. Impact head size: Ф25.4mm, Ф19mm, Ф12.7mm (Customized available)
    4. Specimen holder size : Ф89mm, Ф60mm
    5. Specimen size: 100 mm x 100 mm, Ф100mm
    6. Gas resource pressure: 0.3MPa - 1.0MPa
    7. Gas resource interface: Ф6mm
    8. Instrument dimension: 492mm(L) × 383mm(B) × 752mm(H)
    9. Power supply: AC 220V 50Hz
    10. Net weight: 44kg

    Standard
    GB 8809-88,ASTM D3420,NF T54-116
    Features

    1. TFT screen display results
    2. Specimen pneumatic clamp
    3. Pendulum pneumatic lock and release
    4. Pendulum capacity easy to change
    5. Statistic calculation: max, min, mean and standard deviation
    6. Micro-printer prints mini-report
    7. RS-232 standard communication port.

    accessories:
    mainframe, 1J pendulum, 2J capacity poise, 3J capacity poise, Ф25.4mm impact head, Ф19mm impact head, sample holder, micro-printer.
    Optional parts: Professional software, non-standard impact head, O-rings.
