    Metal Foils / Rubber Films Gas Permeability Tester ISO 15105-1 HTZ-073

    Ask Lasest Price
    Brand Name : HUST Tony
    Model Number : HTZ-073
    Price : contact saler
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

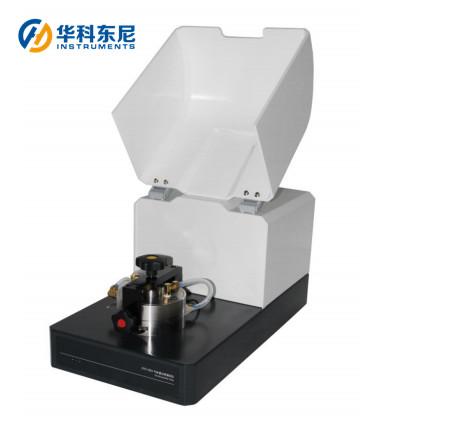

    Metal Foils / Rubber Films Gas Permeability Tester ISO 15105-1 HTZ-073

    Application : HTZ-073 based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.


    Technical Indexes

    1. Test range: 0.05-160,000 cm3/m2·24h·0.1MPa (Standard)

    2. Resolution: 0.001cm3/m2·24h·0.1MPa

    3. Samples: one piece

    4. Vacuum accuracy : 0.1Pa

    5. Temperature range: 5C-95C (With temperature controller)

    6. Temperature accuracy: ±0.1C

    7. Sample thickness: less 5mm

    8. Sample size: >=150mm * 94mm

    9. Test area: 48cm2

    10. Test gas: O2, N2, CO2, He, etc (Flammable or toxic gases test available: H2, CH4, H2S, C2H2,C2H4 etc, must be announced in advance)

    11. Differential pressure: -0.1MPa-0.1MPa; 1.0MPa, 4.0MPa(optional)

    12. Gas interface: Ф8mm

    13. Dimension: 330mm(L) * 600mm(W) * 330mm(H)

    14. Power supply: AC 220V 50Hz

    15. Net wt. : 28kg

    Standards

    ASTM D1434, ISO 15105-1,ISO 2556,GB/T 1038-2000,JIS 7126-1,YBB 00082003

    Features

    l Vacuum differential pressure method

    l One specimen test

    l Computer control

    l One-button test, test automatically through whole process

    l High accuracy vacuum sensors

    l Chamber temperature sensor Ÿ

    l Environment temperature and humidity sensor inside

    l Permeability coefficient ,solubility coefficient and diffusion

    l coefficient test

    l Chamber with water bath temperature

    l control technology (optional)

    l Unit based on embedded system,24bit Δ-Σ AD

    l Multiple test modes optional


    Configuration Standard:

    Main unit, computer,

    G-TRANS software, vacuum pump, tank regulator, PCIE card, cable, sample cutter, vacuum grease.

    Optional:

    Temperature controller, reference film, vacuum grease, sample cutter, DSM system
