    Automatic Shock And Vibration Testing Machine , Vibration test equipment

    Ask Lasest Price
    Brand Name : HTI
    Model Number : HTD-005
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 30 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Automatic Shock And Vibration Testing Machine , Vibration test equipment


    Suitcase Tester Automatic Shock And Vibration Testing Machine


    Specifications:


    Shock And Vibration Tester is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines Leather Case Oscillation Impact Tester is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines and the whole structure of luggages. The testing methods are as follows: First, Load the object with stated load weight. And then do the test to the specimen with the speed of 30 times perminute and the impact height of 4 inches for 2500 times. The tset result can be taken into consideration of quality improvement.


    The main technical parameters:


    Shock And Vibration Tester For Leather Caseer

    Mode

    HTD-005

    Impact Height

    4 inch (0~6 inches) adjustable

    Oscillation Mode

    Spring type: 1.79Kg/mm

    Testing Speed

    5~30 C.P.M. adjustable

    Times Setting

    1~999999 Automatic shutdown

    Additional Function

    It would stop automatically if something goes wrong.

    Dimension

    1400×1200×2500 mm

    Weight

    390 Kg

    Power

    1, 220V/50Hz

    Design criteria

    QB/T2922-2007

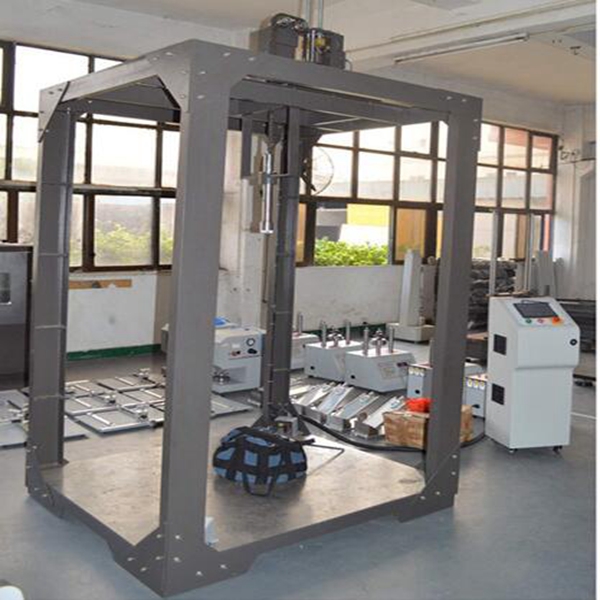

    The images of this machine

    Shock And Vibration Tester For Leather Case
