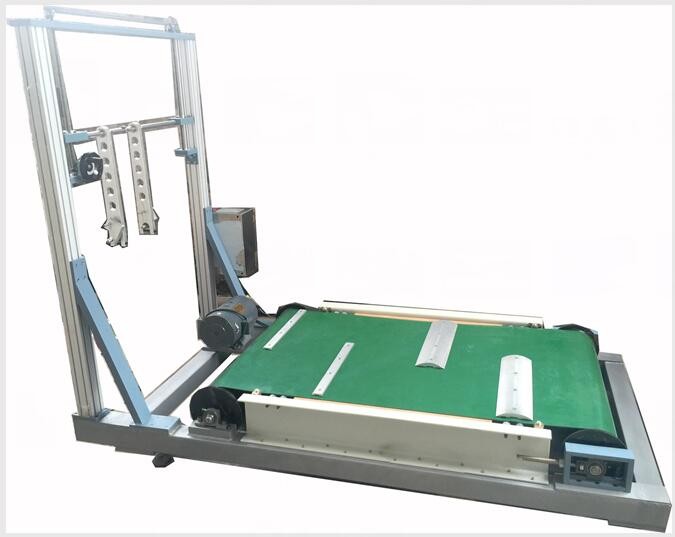

TC-004 Stroller Dynamic Road Condition and Durability Tester-- Irregular surface test equipment

The surface of the irregular surface test equipment shall comprise two types of obstacles: Type A and Type B.
These obstacles shall be mounted on a conveyor system so that the wheels on each side of the vehicle are lifted alternately. The conveyor system shall run at a speed of (5 ± 0,1) km/h.

The test apparatus comprises two independent articulating arms capable of moving independently of each
other in the vertical plane.

The test apparatus shall allow the articulating arms to be adjustable in height and across the width of the
irregular surface test equipment to accommodate different types and sizes of vehicle.
The articulating arms shall pivot around their fixing point.
When in the horizontal position, each arm shall exert a vertical force on the handles of (20 ± 1) N.

Technical parameters:

Work station:1 station

Test speed: 5km/h±0.1km/h(adjustable)

Motor:AC380V×3, ×3HP

Up and low distance:Max. 300mm

Effective width:Max. 1000mm

Timer:LCD,0-999,999

Loading:Max. 100Lb

Power:AC380V×3,×5KW

Size:(L×W×H) 3300×1400×1900mm

Weight: approx 600kg

Impact block: Type "A" obstacle, Type "B" obstacle

Standards:BS EN1888-2012 5.10 Irregular surface test equipment; 8.10.3 Irregular surface test
