Brand Name : | TONY |
Model Number : | HTB-005 |
Certification : | ISO3795 FMVSS302 DIN75200 SAEJ369 ASTM D5132 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 100 set per month |
Delivery Time : | 8 workdays |

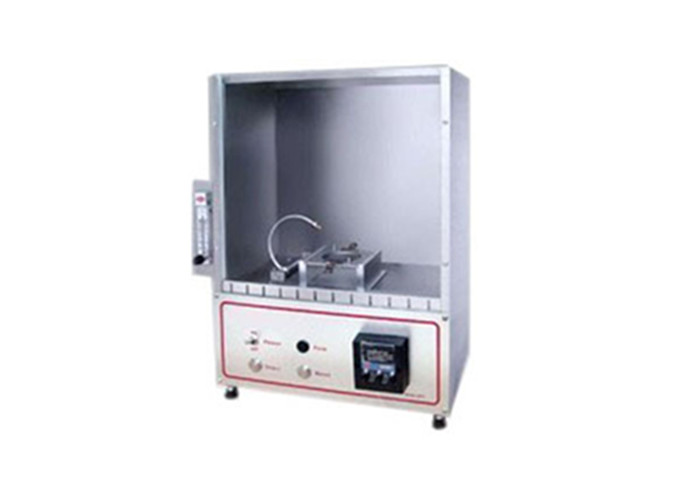

Blanket Flammability Testing Equipment With ASTM D4151 For Textile Testing
Product Name: Blanket Flammability Tester
Model: HTB-005
Detailed Descriptions
Blanket Flammability Tester to test blanket fabric flame retardant performance and fabric surface flame spread performance, the test method is within the stipulated time, to standardize the flame was carried out on the sample surface combustion, the combustion of standard test paper, to look at the degree of damage or discoloration, and fabric for grading evaluation of the test.
Specification:
Test Chamber: | 37cm*22cm*35cm |
Clamp: | 2.5” |
flame length | 16mm |
ignition Time | 30s |
Specimen dimension: | 70mm*70mm |
Dimension: | 42*26*52cm (L*W*H) |
Weight | 20kg |
Power | AC 220V 50Hz 3A |
Accessories: | Micro gas tanks , Micro gas cylinders 2pcs, clamp 1set, clip 2pcs, power line 1pcs |
Test Chamber: | 370mm*220mm*350mm |
Standard:
ASTM D4151
![]() |
