PLC Control Furniture Testing Device For Drawer Mechanical
Durability Testing
Application:
Drawer Durability Tester is used to test the durability of the
drawer slides of furniture.
Apply a certain load inside the drawer, repeated pull-out and close
of the drawer.
After a certain number of cycles, check if the slide is still able
to meet the requirements.
Technical Parameter:
| Model | TNJ-005 |
| Maximum stroke | 400mm |
| Speed | 0.25m/s |
| Test height | Max.108cm |
| Count: | 0 ~ 999999 can be set |
| Control mode | Text controller + PLC control |
| Dimension(W x D x H) | 80x60x120cm |
| Weight (about) | ≈80Kg |
| Power supply | AC 220V 50Hz 3A |
| Gas source | ≥ 6kgf / cm2 stable gas so |
Purpose of equipment
Durability drawer test base on BS EN and BIFMA
Technical specifications
This machine use for opening and closing drawer and must to fulfill
minimum needed as follow:
Compressed air – 6 kg/cm²
AC motor –to control the height from 250-1000mm
Pneumatic cylinder – double acting cylinder with magnetic switch
and maximum stroke 600 mm (adjustable). The cylinder shall have the
fixture to hold any type of drawer handle to open / close the
drawer without exerting force on the drawer system
Control panel/ console consists of :
Power supply: 240 Volts: 13 Amps: 50 Hz
ON/OFF switch button
6- digits Electronic Predetermine Counter (EPC)
The EPC will register every stroke of the cylinder up to six (6)
digits,
Will stop the test operation to the preset stroke,
The EPC will display the number of stroke achieved during the test,
EPC also able to store the number of cycles when the power
interruption take place and able to display the actual reading and
continues counting when operation resumes
The signal shall maintain until the counter is reset
Note: one stroke is counted as one cycle

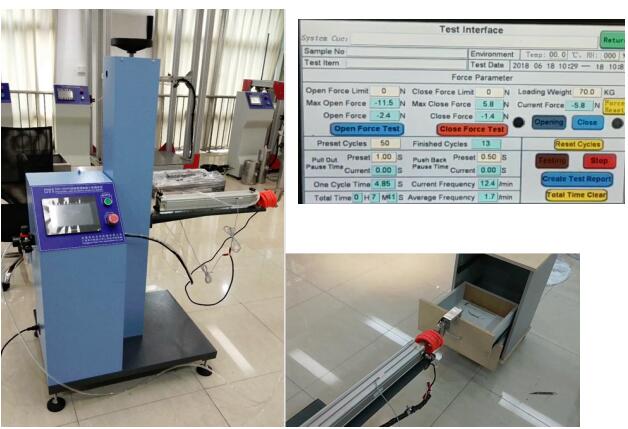

PLC Control Panel :
FAQ:
Q: Are your company a trading company or factory?
A:Factory + trade (integration), has 11 years focusing on test
instruments field, 6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange
shipment within 3 days. Please be aware that our production lead
times depend on specific items and item quantities.
Q:What’s the payment term?
A:T/T,L/C and other payment terms could be negotiated.
Q:What's the warranty and after-sales service?
A:12 months warranty. Feedback to you within 24h and help you to
repair your problem controller freely, even it's not from our
factory.
Q:What the standards do you adopt?
A:We have been adopting the world standards and regulation such as
ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE,
and CSA.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and
test when shipping and delivery goods. Product use training, each
of our product provide video training to show you how to install &
operate. We can arrange engineer to train the operation of
equipment to customer’s company when you need. And our Main clients
: SGS, BV and Intertek.
