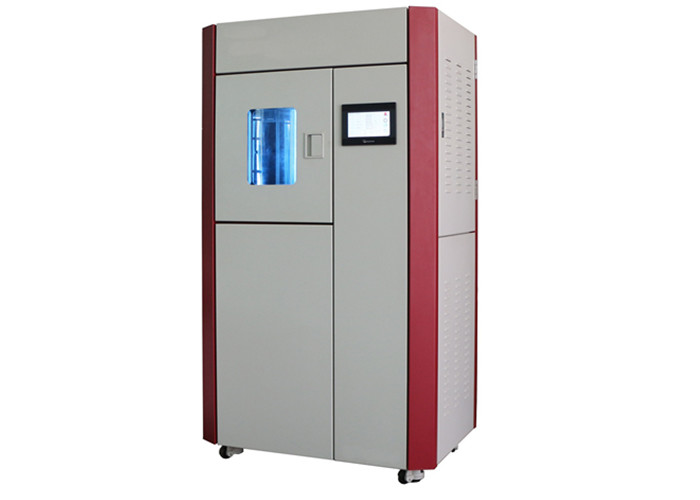

Xenon Weather-Ometer For Lightfastness Testing
INTRODUCTION
The THE-002A Master is a lightfastness tester designed to meet the
requirements of ISO 105 B02 and AATCC Test Method 16 standards. It
has a rotating specimen rack and provides precise control of
critical test parameters including spectrum, irradiance, relative
humidity, chamber temperature and black standard temperature.
USAGE
To determine the resistance of the color of textiles to fade when
exposed to artificial light (xenon arc) which is representative of
natural daylight.
TESTING STANDARDS
ISO 105-B02 Textiles -- Tests for color fastness -- Part B02: Color
fastness to artificial light: Xenon arc fading lamp test
ISO 105-B04 Textiles -- Tests for color fastness -- Part B04: Color
fastness to artificial weathering: Xenon arc fading lamp test
ISO 105-B07 Textiles -- Tests for color fastness -- Part B07: Color
fastness to light of textiles wetted with artificial perspiration
AATCC TM 16 – Option 3 Colorfastness to Light: Xenon-Arc
M&S C9 Colorfastness to Light
M&S C9A Colorfastness to wet light in the presence of alkaline
or other chemical residues
JIS L 0843 Test method for color fastness to xenon arc lamp light
JIS L 0888 Test method for color fastness to light and perspiration
Method B
IS 15203 Textiles - Method of Test for Determination of Color
Fastness of Textile Materials to Artificial Light at High
Temperatures - Xenon Arc Fading Lamp Test
SALIENT FEATURES
1. Full Color 7" Touch Screen Control Panel Display of
■ Direct Setting and Control of Irradiance
■ Direct Setting and Control of BPT/BST
■ Direct Setting and Control of Relative Humidity
■ Direct Setting and Control of Specimen and Chamber Air
Temperature
■ 8 Factory Pre-programmed Test Methods
■ Space for 4 Custom Programs
2. Graphic display of the progression of all test parameters.
3. High performance, long lasting, air-cooled xenon lamp.
4. Solar-powered radiometer, incorporating a black standard
thermometer.
5. Works in ‘controlled irradiance’ or ‘blue wool’ mode.
6. Eleven double-sided sample holders offer a massive exposure area
of up to 1370cm².
7. Refined software which perfectly reflects the needs of the
operator.
8. High efficiency power supply ensures running costs remain low.
9. Complies with international standards for textiles, leather and
other materials.
10. Compact, stylish and ergonomic design.
TECHNICAL DETAILS
1. Light Source: 2500W air-cooled xenon arc lamp (recommend
replacing lamps every 1500 hours)
2. Test types: Light only, Dark only, Spray only,
3. Total Exposure Area: 1370cm²
4. Test Positions: 11 (ISO) or 5 (AATCC)
5. Exposure Area of each Test Position: ISO 65.25cm² (145 x 45) mm
AATCC 108.75cm² (145 x 75) mm
6. Irradiance Monitoring System: Radiometer
7. Irradiance 420nm Range: 0.80～2.01W/m² (optional 340nm, 300-400nm
or 280-800nm)
8. Rack rotating speed: 5r/min
9. Test Chamber Humidity Range: Light Cycle 10%～70%RH,Dark Cycle
30%～95%RH
10.Test Chamber Temperature Range: 25ºC～50ºC
11. Black Standard Temperature Range: 40ºC～85ºC±1ºC
12.Black Panel Temperature Range(optional): 40ºC～80ºC±2ºC
13. Water Reservoir Capacity: 15 liters
14. Water Consumption (ISO 105-BO2 Normal): 0.9 l/h (max.)
15. Color Touch Screen: Supplied as standard
16. Chamber Viewing Window: Supplied as standard
17. Dimensions: 920 x 650 x 1680 mm
18. Power supply: 220V 50Hz 6kW
19. Weight: 180 kg
20. Lamp & Lantern Specifications
| Item | Quantity | Description |
| Lamp | 1 | 2500W Xenon, Air-Cooled |
| Inner Filters | 7 | Windows |
| Outer Filter Cylinder | 1 | Quartz |
